FRP Louvers
Space FRP Louvers | Lighting & Air ventilation

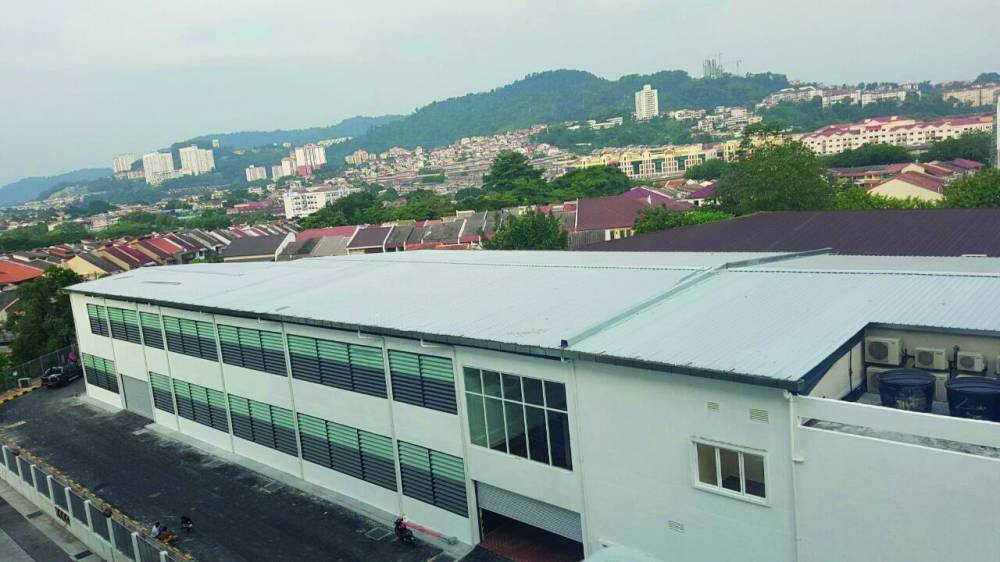

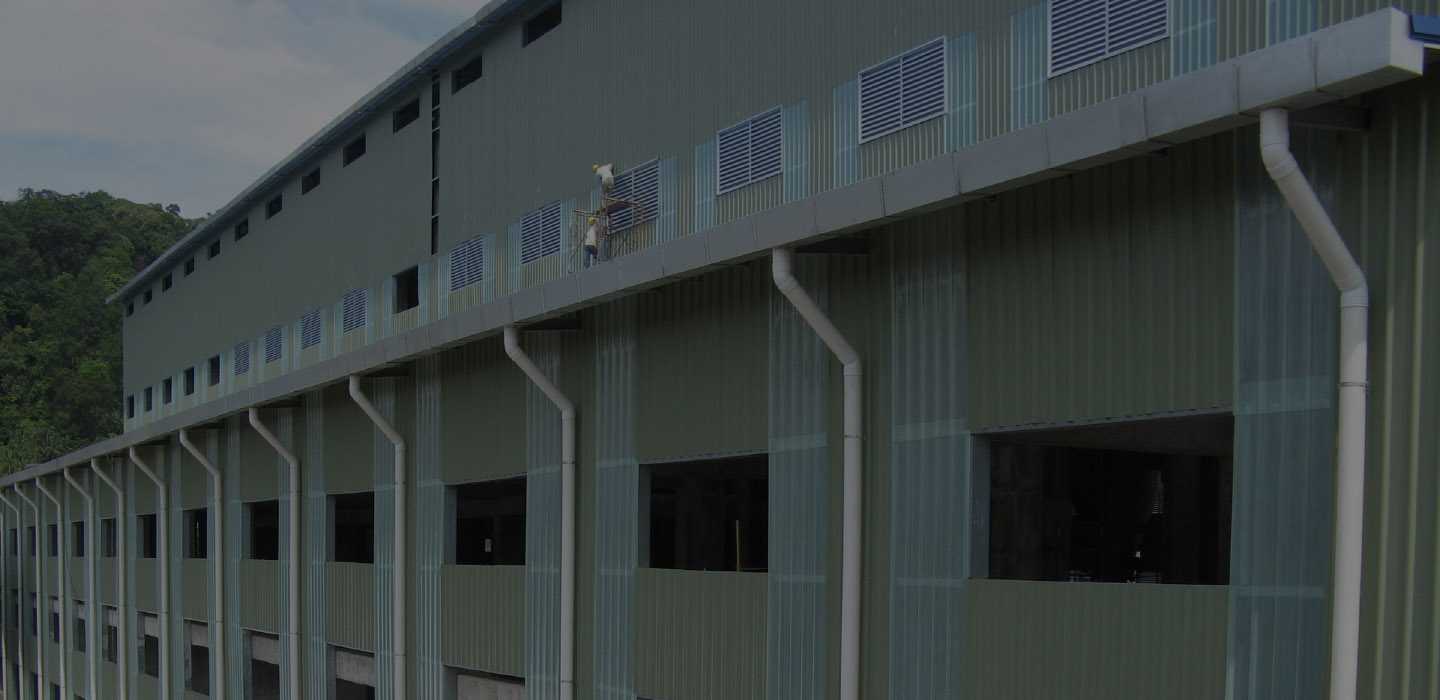

SPACE® Louvers improve interior daylighting and perform the important function of ventilation and air flow in buildings. It can also provide architectural style to building designs. While our louvers provide fresh air intake and exhaust, it allows natural daylight into buildings to enhance the level of lighting. Reducing the need for artificial lighting is a logical method to save energy costs and the environment.
Main Benefits & Features
Suitable for most buildings and applications.
Effective green solution.
Easy installation and maintenanceSpace FRP Louvers | Lighting & Air ventilation

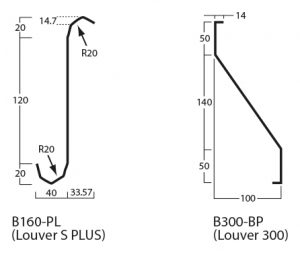

Existing Profile
Space FRP Louvers | Design Consideration

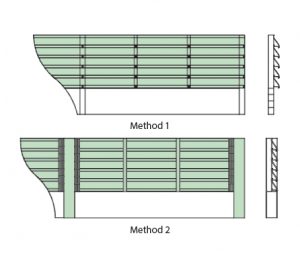

Three methods to install SPACE® Louvers:
1. Continuous sheet length.
2. Pole to pole distance.
3. Customisation.
Space FRP Louvers | Installation guide

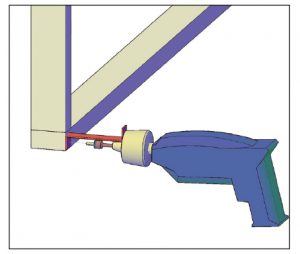

Install louver holder from the lowest row by fastening them on both end sides, then use alignment string and leveler to check the horizontal level that the louver should be paralleled with the installation designated area.
Tolerance in between SPACE® fibreglass louver blade should not be exceeding 50mm to capture airflow and water tight. Steel support for louver holder should not exceed center to center 800mm.
Minimum side lapping of SPACE® fibreglass louver blades is 50mm. Maximum length for SPACE® fibreglass blade is 6 meter. Overhang or cantilever of SPACE® fibreglass louver blade should not exceeding 100mm.

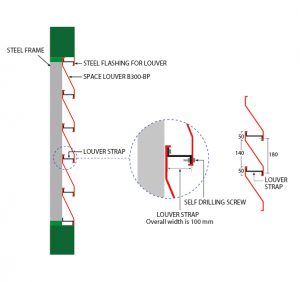

Fixing Procedure

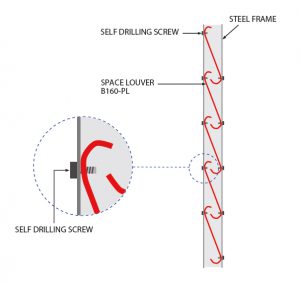

B160-PL (Louver S PLUS)
B300-BP (Louver 300)
Space FRP Louvers | Downloads
SPACE FRP Louvers Brochure
SPACE FRP Installation Guide
