Crystal-Lite Series | Residential FRP Roofing

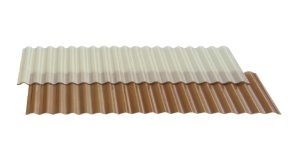

SPACE® CRYSTAL-LITE Series is a reliable, cost effective and easy to install skylight roofing
sheets with a 10 year product warranty. Widely used for residential and commercial skylight applications.
Applications
Premium UV Polyester Film
- Bondable & non peelable
- UV protected
- Glossy lamination protect surface delamination & prolong material lifespan
E-Glass Chopped Strand Mat
- High impact resistance & tensile strength
- Easy profiling
- Even Thickness
Orthophthalic Resin + Light Diffuser Additive
- Good heat resistance & excellent transparency
- Diffuse light evenly
Garware Standard Polyester Film
- Bondable & non peelable
- Allow profile stability
- Glossy lamination protect surface delamination & prolong material lifespan
Crystal-Lite Series | Residential FRP Roofing
Characteristics
• Light uniformly distributed
• UV protection
Specifications
Standard Length : 6.1 Meter or cut to length
Rib Height : 8mm
Colour : Tea Brown, Opal White
Light Transmission : 57 %
GSM : 1800 GSM (+/-1.2mm)
Warranty : 10 years
Crystal-Lite Series | Residential FRP Roofing
Installation Guide
• Effective Width : 950mm
• Maximum Span for Mid Purlin : 750mm
• Maximum Span for End Purlin : 300mm
• Maximum Overhang of Sheet from End Purlin : 150mm

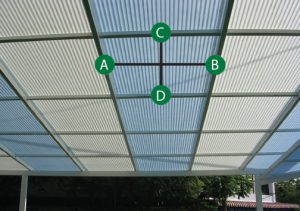

Spacing Recommendation
A to B : 950mm C to D : 750mm

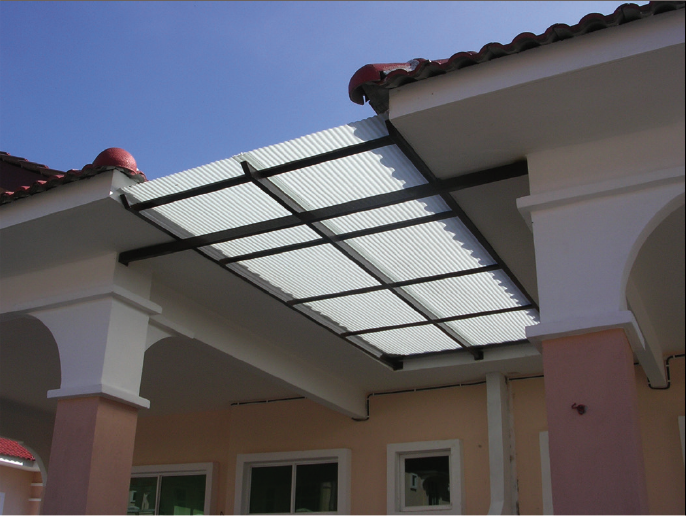

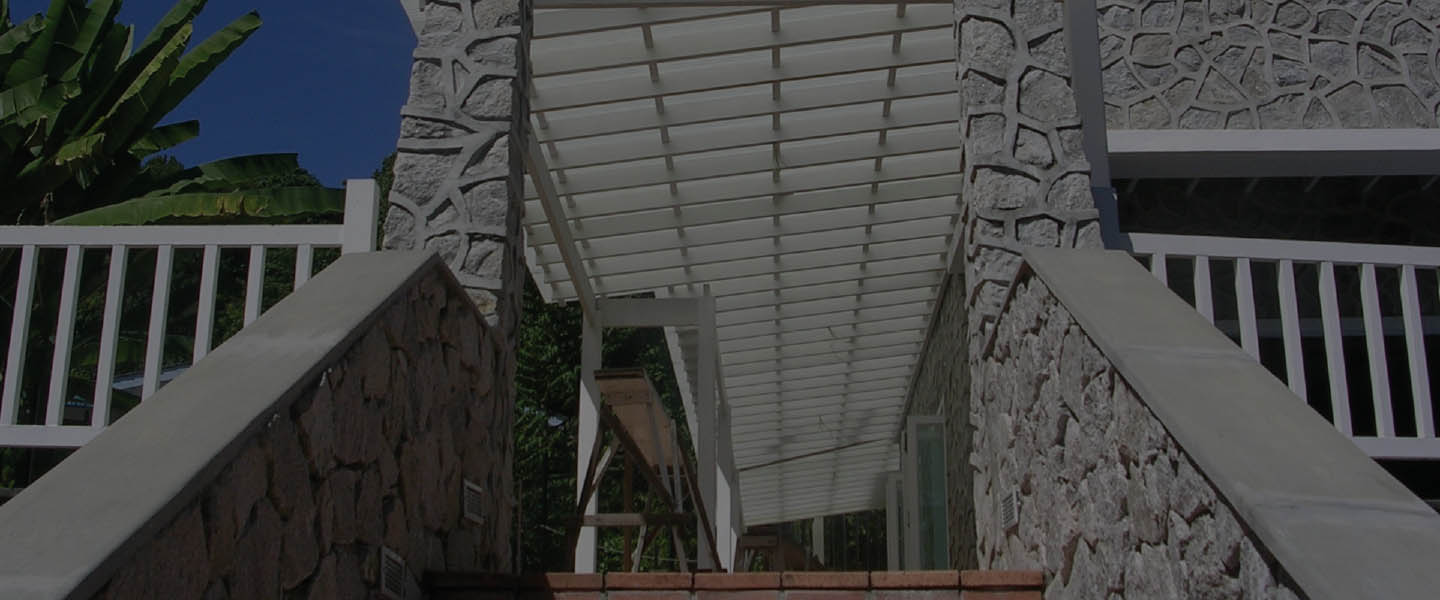

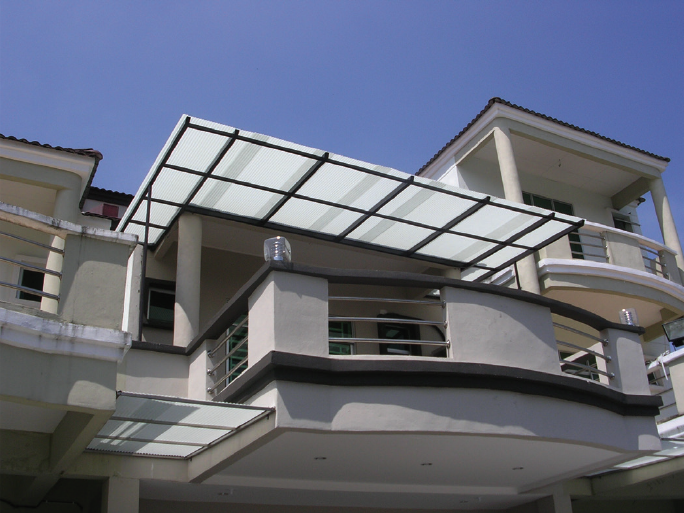

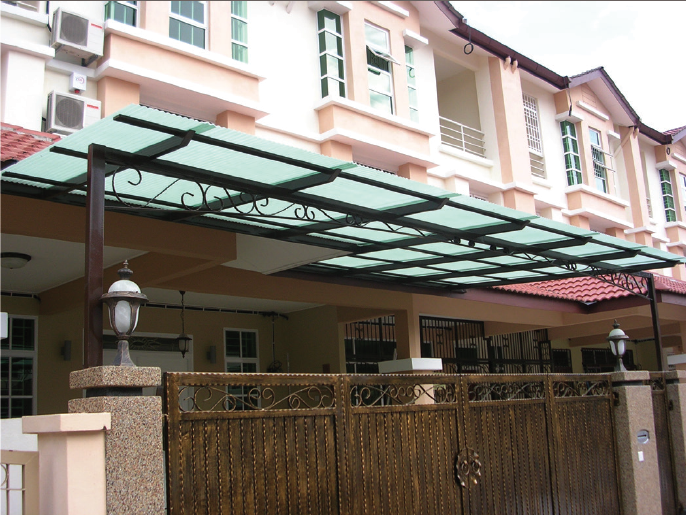

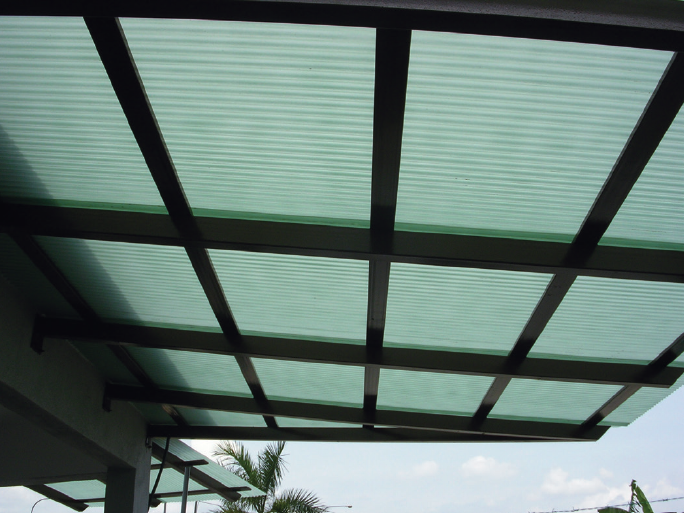

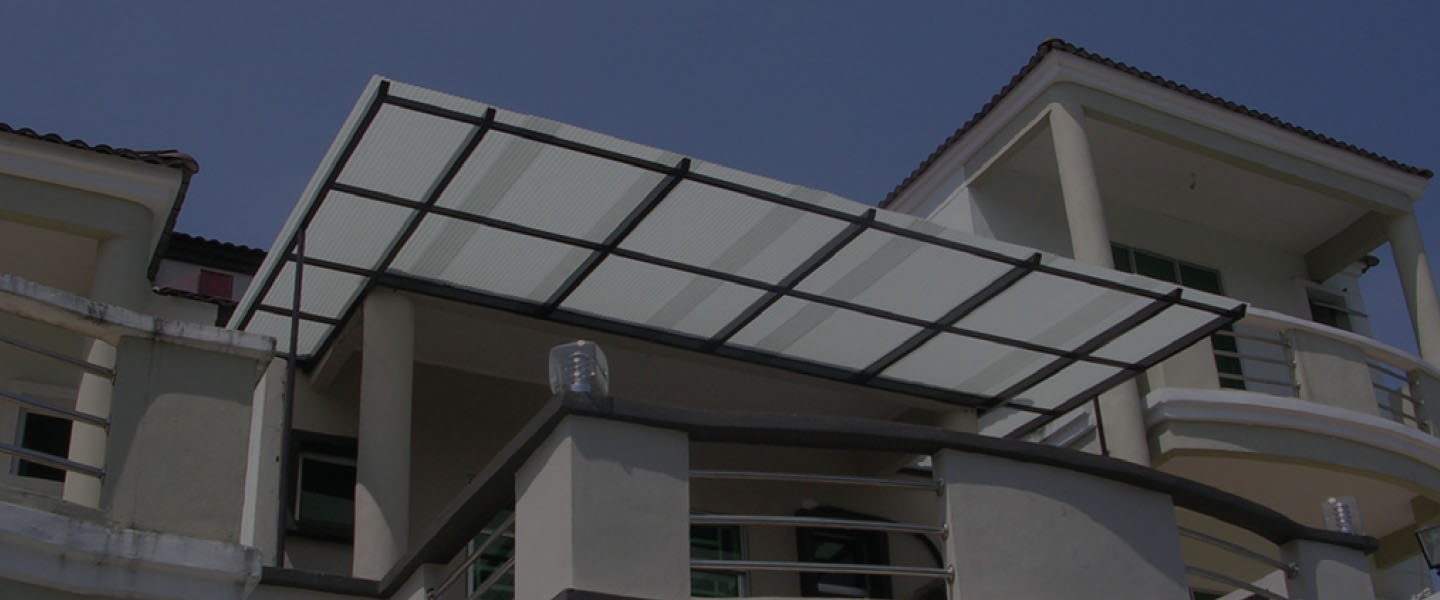

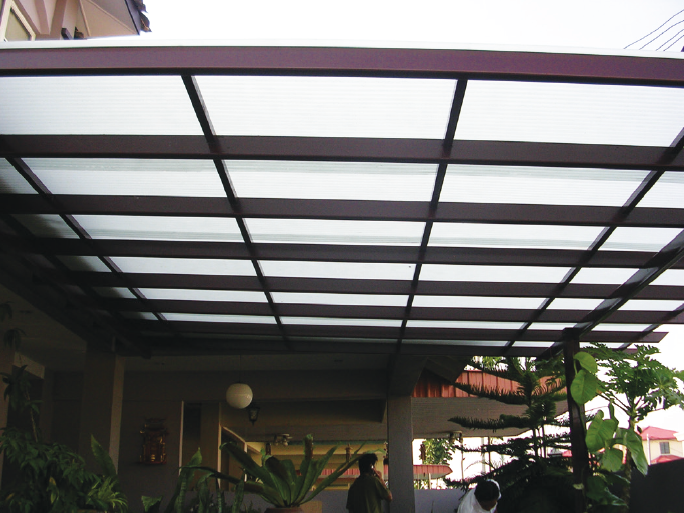

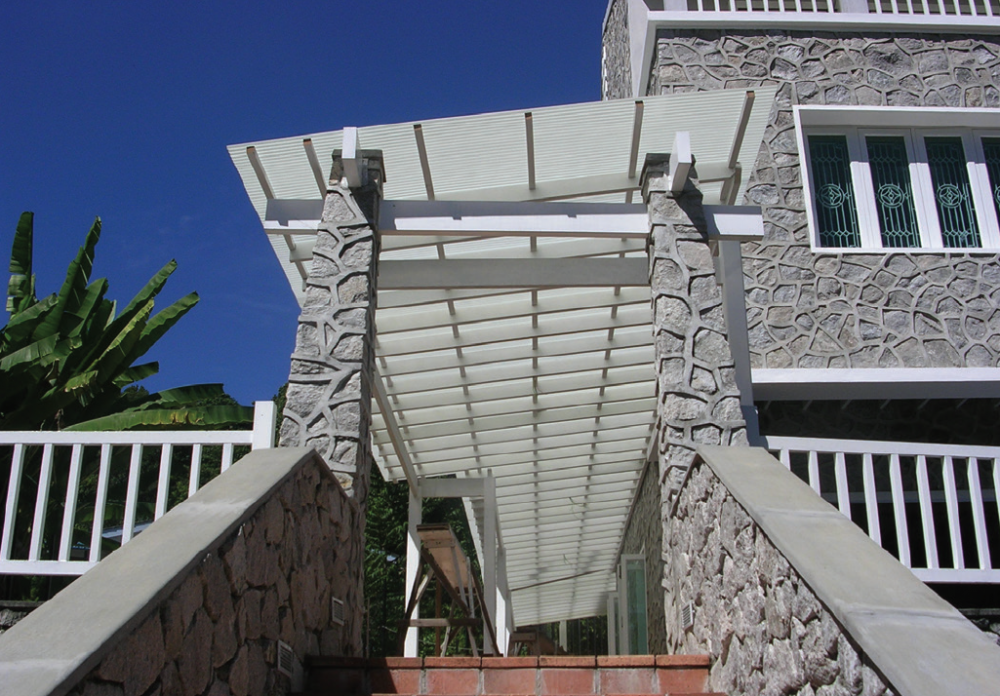

Applications
• Bus stand
• Car porch
• Guard house
• Overhead bridge
• Pergola
• Swimming pool
• Walkway
